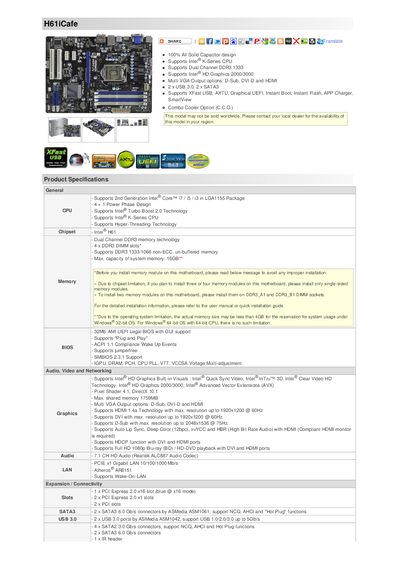

H61iCafe is a motherboard that supports Intel® K-Series CPU and has a 100% all solid capacitor design. It supports dual channel DDR3 1333 memory and Intel® HD Graphics 2000/3000. It offers multiple VGA output options including D-Sub, DVI-D, and HDMI. The motherboard also supports USB 3.0 and SATA3 interfaces, as well as features like XFast USB, AXTU, graphical UEFI, instant boot, instant flash, APP Charger, and SmartView. Please note that this model may not be sold worldwide and availability may vary by region.
The H61iCafe motherboard is built on the Intel H61 chipset and supports 2nd‑generation Intel Core i7/i5/i3 processors in an LGA1155 package. It features a 441‑phase power design, dual‑channel DDR3 memory up to 16 GB, and integrated Intel HD Graphics 2000/3000 with multiple display outputs.
Connectivity includes two USB 3.0 ports, multiple SATA III and SATA II connectors, Gigabit LAN, and a range of audio/video interfaces such as HDMI, DVI‑D, and D‑Sub. Additional ASRock utilities like Instant Flash, SmartView, and XFast USB enhance system performance and user experience.
| Supported CPUs | 2nd‑generation Intel Core i7 / i5 / i3 (LGA1155) |
|---|---|
| Chipset | Intel H61 |
| Graphics Outputs | D‑Sub, DVI‑D, HDMI (up to 1920×1200 @ 60 Hz) |
| USB 3.0 Ports | 2 ports (ASMedia ASM1042) |
| Audio Codec | Realtek ALC887 7.1‑channel HD Audio |
It supports 2nd‑generation Intel Core i7, i5, and i3 CPUs in an LGA1155 package.
It offers D‑Sub, DVI‑D, and HDMI ports, supporting resolutions up to 1920×1200 at 60 Hz.
Yes, it provides two USB 3.0 ports via the ASMedia ASM1042 controller.
