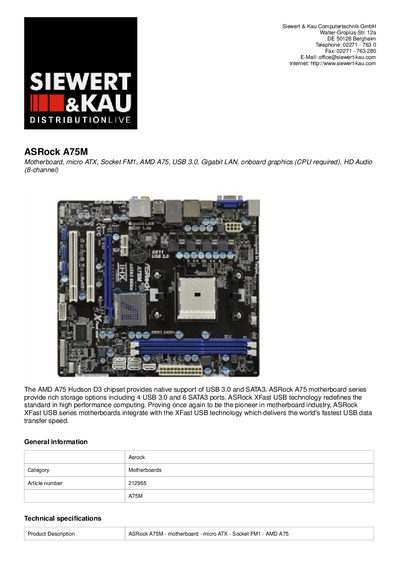

ASRock A75M motherboard is a micro ATX motherboard that supports AMD FM1 processor, supports 4 memory slots, and can support up to 16GB of memory. The motherboard is equipped with 4 USB 3.0 ports, 2 USB 2.0 ports, 1 eSATA port, 1 gigabit network card port, and 1 audio port.
The ASRock A75M is a micro‑ATX motherboard featuring the AMD A75 Hudson chipset and Socket FM1 for AMD FM1 processors. It supports up to 16 GB of DDR3 SDRAM in a dual‑channel configuration and includes integrated graphics with 512 MB of shared video memory.
The board offers extensive connectivity: four USB 3.0 ports, two USB 2.0 ports on the rear panel plus six USB 2.0 headers, five SATA‑600 ports with RAID support, one eSATA‑600 port, a Gigabit Ethernet controller, and a Realtek ALC892 8‑channel HD audio codec. Expansion slots include one PCIe 2.0 ×16, one PCIe 2.0 ×1 and two legacy PCI slots. Power is supplied via a 24‑pin ATX connector and an 8‑pin ATX12V connector.
| Form factor | micro ATX |
|---|---|
| CPU socket | Socket FM1 |
| Chipset | AMD A75 |
| Memory slots | 2 DIMM slots, DDR3 SDRAM |
| Supported RAM speeds | 800‑2400 MHz |
| USB ports | 4 × USB 3.0, 2 × USB 2.0 (rear) + 6 × USB 2.0 via headers |
| SATA ports | 5 × SATA‑600 (RAID) + 1 × eSATA‑600 |
| LAN | Gigabit Ethernet |
| Audio codec | Realtek ALC892 8‑channel HD Audio |
| Video memory | 512 MB shared (UMA) |
| Power connectors | 24‑pin ATX main, 8‑pin ATX12V |
It uses a Socket FM1 for compatible AMD processors.
The motherboard offers four USB 3.0 ports, two USB 2.0 ports on the back panel, and six additional USB 2.0 ports via internal headers.
Yes, it provides shared video memory (UMA) of 512 MB, which requires a CPU with graphics support.
