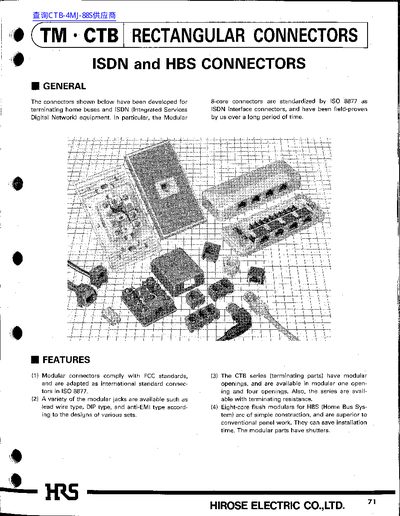

The CTB series of rectangular connectors are designed for terminating ISDN (Integrated Services Digital Network) and Home Bus System (HBS) equipment. They follow the ISO 8877 standard for 8‑core modular connectors and have been field‑proven by Hirose Electric.
A variety of modular jacks are offered, including lead‑wire, DIP, and anti‑EMI types, with options for terminating resistance, dust covers, and magnets. The connectors feature a simple flush‑mounted construction that reduces installation time compared with conventional panel work.
| Connector standard | ISO 8877 |
|---|---|
| Maximum distance (short ISDN bus) | 150 m |
| Maximum distance (long ISDN bus) | 550 m |
| Number of terminals | Up to 8 |
| Cable length range | 0.4 – 0.65 m |
| Dust covers and magnets | Optional |
The short‑distance ISDN bus can be terminated up to 150 m.
The long‑distance ISDN bus can be terminated up to 550 m.
No, dust covers and magnets are optional and must be ordered separately.
Use the CTB wiring tool (product numbers CL250‑0010‑7 and CL250‑0011‑0).
