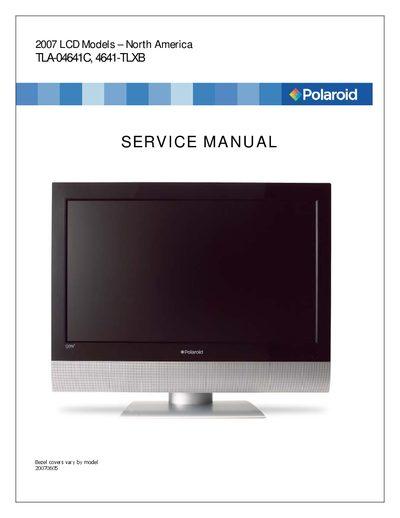

This file is the 2007 TLA-04641C, 4641-TLXB LCD model service manual, which includes product use instructions, cleaning and maintenance instructions, etc.
This service manual provides important safety and service information for the Polaroid TLA-04641C / 4641‑TLXB LCD television. It covers electrical safety, ESD precautions, lead‑free solder handling, and detailed disassembly procedures for the cabinet, control box, IR board, and other components.
The document also lists the TV’s technical specifications—including video input formats, HDMI details, power requirements, and sound output—plus PCB layout diagrams, troubleshooting flow charts, and a spare parts list to assist qualified service technicians.
| HDMI format | DVI 1.0 |
|---|---|
| Maximum pixel clock | 135 MHz |
| HDMI connector count | 1 |
| Analog HD15 signal format | RGB |
| Power source | AC100‑240 V, 60/50 Hz |
| Sound output | 10 W × 2, 8 Ω |
The TV operates on an AC input of 100 V to 240 V at 50 Hz or 60 Hz.
The HDMI interface supports a maximum pixel clock of 135 MHz.
Only lead‑free solder matching the component’s symbol (Sn‑Ag‑Cu, Sn, etc.) should be used.
