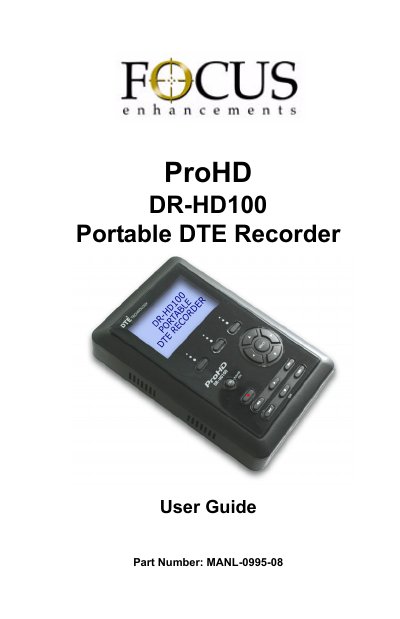

ProHD DR-HD100 is a portable DTE recorder with confidential and trade secret information. It provides complete and accurate information and is protected by copyright laws. The recorder is produced by Focus Enhancements.
This manual explains how to install, operate, and maintain the ProHD DR‑HD100 Portable DTE Recorder. It includes safety warnings, power‑connection instructions, and recommended accessories.
Key sections cover electrical precautions, non‑use periods, accessory compatibility, detailed technical specifications, error‑message troubleshooting, and warranty information, helping users get reliable performance from the recorder.
| Dimensions | 1.59" x 5.6" x 3.74" (40mm x 142mm x 95mm) |
|---|---|
| Weight | 1 lb. (0.45 kg) |
| DV Video I/O | 25 Mb/s (1× 6‑pin IEEE‑1394) |
| FireWire Computer Interface | up to 400 Mb/s (1× 6‑pin IEEE‑1394) |
| Power Supply | 15 V DC, 7.5 W |
| Battery | Custom removable Li‑ion pack, ~90 min run‑time |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
The display will show the error message “LOW BATTERY! Battery power is low,” indicating you need to connect AC power or replace the battery pack.
Do not expose the unit to moisture, use only shielded cables, keep the power cord fully inserted, and avoid overloading outlets.
In HD RECORDER mode the unit accepts 720P and 1080i MPEG video from compatible camcorders, and DV video I/O at 25 Mb/s.
