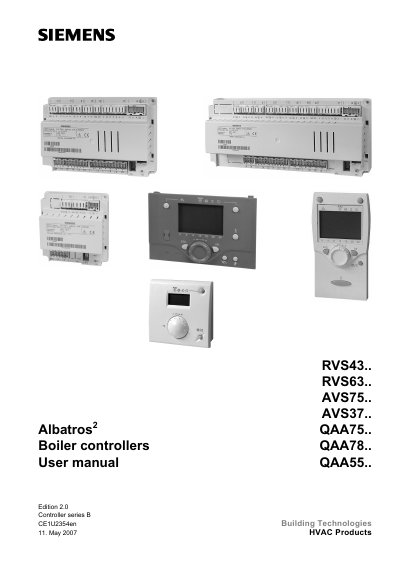

Siemens Albatros2 Boiler Controllers RVS43 & RVS63 User Manual

This is a user manual for Albatros2 boiler controllers. It mainly introduces the features, installation and operation methods of the products.

Brand: Albatros
Document type: User Manual
Language: English
Pages: 156
File format: PDF
File size: 3.4 MB
Published: 04 May, 2012
Updated: 30 September, 2023
MD5 checksum: FD75C7CA9665C55F6C381984A46B74E9
PDF: Siemens Albatros2 Boiler Controllers RVS43 & RVS63 User Manual PDF

About this manual

This manual provides detailed instructions for the Siemens Albatros2 series boiler controllers, including basic units (RVS43, RVS63), extension modules, operator units and room units. It covers safety notes, mounting, wiring diagrams, commissioning steps and handling procedures.

Technical data such as rated voltage, power consumption, weight, IP protection and wiring requirements are listed, along with diagnostic codes, programming options and maintenance functions for end‑users and heating engineers.

What's inside

Summary
Safety notes
Mounting and installation
Commissioning
Handling
Technical data
Revision history

Specifications

Rated voltage (basic units)	AC 230 V (±10%)
Power consumption RVS43.143	8.5 VA max
Weight RVS43.143	587 g
Weight RVS63.283	648 g
IP protection (room units)	IP20 for QAA7x, IP40 for AVS37, IP20 for QAA55

Frequently asked questions

What is the rated voltage for the basic units?

The basic units operate at AC 230 V with a tolerance of ±10 %.

How long does the battery in the operator unit last?

The battery life is approximately 1.5 years.

What IP protection rating do the room units have?

Room units QAA7x have IP20, AVS37 units have IP40, and QAA55 units have IP20.
