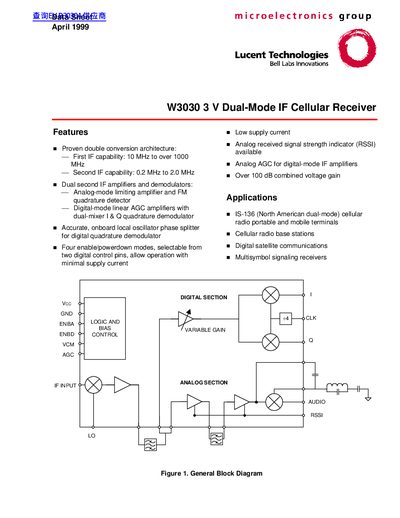

This data sheet introduces the features and characteristics, application scenarios of W3030 3 V dual-mode IF cellular receiver.
The W3030 is a monolithic integrated circuit that provides the receive‑path functions required for IS‑136 and IS‑54 cellular standards. It supports both analog FM and digitally modulated IF carriers up to 200 MHz, offering separate analog and digital second‑IF sections, RSSI, and quadrature demodulation.
The data sheet lists the device's pinout, absolute maximum ratings, operating ranges, and electrical specifications such as supply voltage (2.7‑41 V), supply current (as low as <1 µA in sleep mode), and output current (160 mA continuous). Four enable/power‑down modes are selectable via two digital control pins, allowing flexible power management.
| Supply Voltage | 2.7 V – 41 V |
|---|---|
| Supply Current (Fully Enable, Vcc=3.3 V) | 8 mA – 11 mA |
| Input Frequency Range (First IF) | 10 MHz – 1000 MHz |
| Output Current (continuous) | 160 mA |
| Power Dissipation | 650 mW |
| Ambient Operating Temperature | 35 °C – 100 °C |
The device operates from 2.7 V up to 41 V.
The W3030 can source up to 160 mA continuously.
The absolute maximum positive supply voltage is 45 V.
