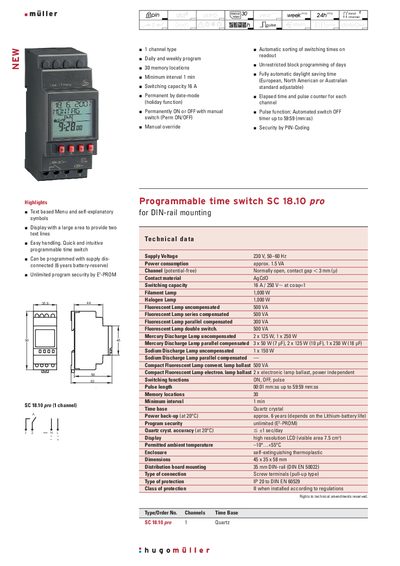

SC 18.10 pro is a programmable time switch for DIN rail mounting. It features a text-based menu and self-explanatory symbols, a large area display and easy handling. It can be programmed when the power is turned off and has a 6-year battery backup.
The SC 18.10 Pro is a DIN‑rail mounted programmable time switch with a text‑based menu, large LCD display, and PIN‑code security. It offers daily and weekly programs, up to 30 memory locations, and functions such as pulse timing, daylight‑saving adjustment, and manual override.
Technical data include a 230 V, 50‑60 Hz supply, approx. 1.5 VA power consumption, 16 A/250 V switching capacity, and a 6‑year battery‑backed power reserve. The unit measures 45 × 35 × 58 mm, is housed in a self‑extinguishing thermoplastic enclosure (IP20), and operates from –10 °C to +55 °C.
| Supply Voltage | 230 V, 50-60 Hz |
|---|---|
| Power Consumption | approx. 1.5 VA |
| Switching Capacity | 16 A / 250 V~ |
| Contact Material | AgCd0 |
| Memory Locations | 30 |
| Minimum Interval | 1 min |
| Pulse Length | 00:01 to 59:59 mm:ss |
| Dimensions | 45 x 35 x 58 mm |
The unit can switch up to 16 A at 250 V.
It provides 30 memory locations for programs.
The backup lasts approximately 6 years, depending on the lithium‑battery life.
The minimum interval is 1 minute.
