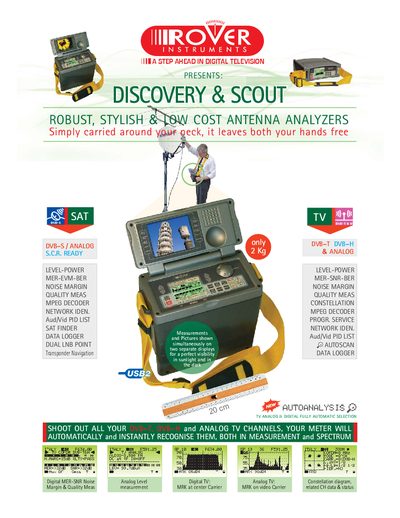

DISCOVERY & SCOUT is a digital television measurement meter released by Roger, supporting DVB-S, DVB-T and DVB-H signals, with spectrum analysis, MER-SNR noise threshold, quality measurement, constellation diagram, decoder, program, service, network identification, audio/video PID list, automatic scanning, data logging and other functions, using a dual display design, weighing only 2 kg.
The Discovery & Scout meter is a compact, 2 kg handheld analyzer that measures both analog and digital TV signals in terrestrial and satellite bands. It features dual displays (a graphic spectrum view and a 4" TFT color screen), a built‑in shoulder strap, and up to 3–4 hours of battery life for hands‑free operation.
The device supports navigation of TV channel plans, satellite transponder databases, and automatic autoscan of channels. Measurements include MER, EVM, Noise Margin, Quality, BER, and power levels, with spectrum analysis, max‑hold, and automatic reference level functions. Data can be logged and transferred via the USB‑2 port for firmware updates and report printing.
| Weight | 2 kg |
|---|---|
| Battery Autonomy | 3–4 hours |
| Flash Memory Capacity | Up to 200 plans |
| Display Size | 4‑inch TFT color |
| Power Measurement Range | 30 – 123 dBuV |
| Frequency Marker Resolution | 0.1 MHz |
It weighs about 2 kg, making it easy to carry on a shoulder strap.
The built‑in batteries provide roughly 3 to 4 hours of continuous use.
The flash memory can hold up to 200 channel plans and thousands of TV channels.
