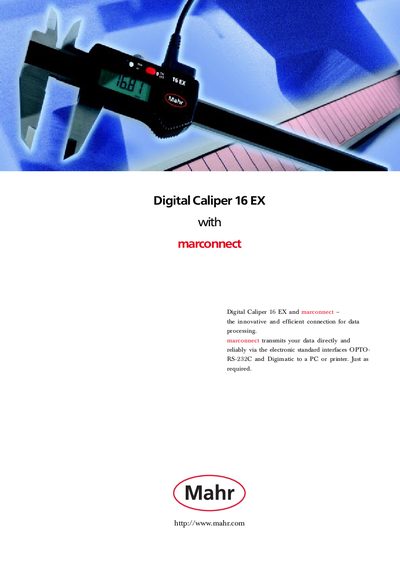

Digital Caliper 16 EX is a digital caliper with marconnect connection system, which transmits data directly and reliably via electronic standard interfaces OPTO-RS-232C and Digimatic to a PC or printer. Its features include measurement functions, high contrast LCD display, stainless steel slide and beam, measuring blades for inside measurement, depth measuring rod, and step measuring function.
The MAHR Digital Caliper 16 EX, equipped with the marconnect system, provides reliable data transmission via OPTO‑RS‑232C and Digimatic interfaces to a PC or printer. Its stainless‑steel slide and beam, high‑contrast LCD, and step‑measuring function make it suitable for precise dimensional measurements.
The leaflet lists key features such as capacitive measuring, a 2‑year battery life, and a measuring speed of 1.5 mm/s (60°/s). Technical specifications include a 150 mm (6 in) range, 0.01 mm (0.0005 in) resolution, and a 0.03 mm (0.0015 in) error limit. Accessories like depth‑measuring bridges, batteries, and RS‑232C/Digimatic cables are also detailed.
| Measuring speed (data cable) | 1.5 mm/s (60°/s) |
|---|---|
| Battery type | CR2032 3 V |
| Data interfaces | OPTO‑RS‑232C, Digimatic |
It transmits data via the OPTO‑RS‑232C and Digimatic standard interfaces.
