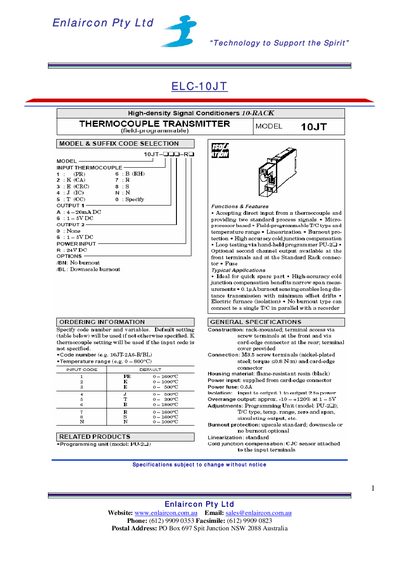

This document introduces the specifications of ELC-10JT, including product features, models, power, frequency range, etc.
The Enlaircon 10JT is a high‑density signal conditioner designed for thermocouple applications. It offers four output functions, field‑programmable settings, and high‑accuracy cold‑junction compensation.
Key specifications include a 24 V DC power input, 4‑20 mA and 0‑5 V output options, linearization accuracy of 0.05 %, and a response time of 20.8 seconds. The unit is rack‑mounted, flame‑resistant, and suitable for temperatures from –5 °C to +55 °C.
| Power input | 24V DC +10% (ripple 10% p‑p max.) |
|---|---|
| Minimum span | 3 mV approx. |
| Input resistance | 20 kΩ minimum |
| Operating temperature | -5 to +55 °C (23 to 131 °F) |
| Linearization accuracy | 0.05 % |
| Cold junction compensation error | +0.5 °C |
| Response time | 20.8 seconds (0‑90 %) |
| Dimensions | W25 × H99 × D180 mm |
It requires a 24 V DC power input with a ±10 % ripple tolerance.
The device operates from –5 °C to +55 °C (23 °F to 131 °F).
The linearization accuracy is 0.05 %.
The response time is 20.8 seconds for 0‑90 % of the full‑scale output.
