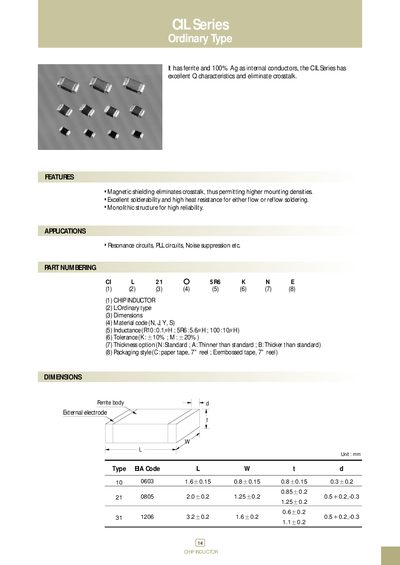

The CIL Series Ordinary Type Chip Inductor has magnetic shielding function, which can eliminate crosstalk and thus allow higher mounting densities. It has excellent solderability and high heat resistance for both flow or reflow soldering. Monolithic structure for high reliability.
The CIL ordinary‑type chip inductors use a ferrite body with 100 % silver internal conductors, providing excellent Q characteristics and eliminating crosstalk. Features include magnetic shielding, high solderability, high heat resistance, and a monolithic structure for reliability.
The document lists part numbering, dimensions, inductance values, tolerance options, and packaging styles (paper tape or embossed tape on 7‑inch reels). Test equipment specified is HP4291A and HP16193A, and typical applications are resonance circuits, PLL circuits, and noise suppression.
| Magnetic shielding | eliminates crosstalk |
|---|---|
| Solderability | excellent, high heat resistance |
| Structure | monolithic, high reliability |
| Internal conductor material | Ferrite and 100 % Ag |
| Inductance (example) | 0.047 µH for CIL10N 47NO |
| Tolerance options | K: +10 %, M: +20 % |
| Packaging style | paper tape or embossed tape, 7" reel |
| Test equipment | HP4291A + HP16193A |
The inductors use ferrite and 100 % silver as internal conductors.
Packaging is offered as paper tape or embossed tape on a 7‑inch reel.
HP4291A and HP16193A are listed as test equipment.
