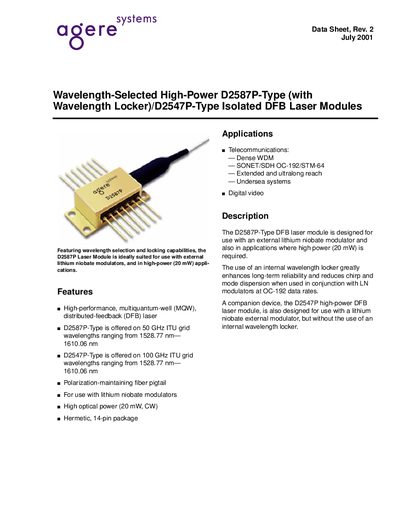

This data sheet introduces the features and characteristics of the D2587P-Type (with wavelength locker)/D2547P-Type isolated DFB laser module
The Agere D2587P-Type and D2547P-Type DFB laser modules provide high‑power (20 mW CW) output with wavelength‑selection (D2587P) or isolation (D2547P). They are designed for use with external lithium‑niobate modulators in telecommunications, SONET/SDH and digital video applications. The modules feature a hermetic 14‑pin metal/ceramic butterfly package, polarization‑maintaining fiber pigtail and internal optical isolator.
Key functional blocks include internal wavelength‑locking optics (two etalons and photodiodes), a thermoelectric cooler with thermistor feedback, and a back‑facet InGaAs PIN photodiode for power monitoring. The data sheet lists electrical and optical characteristics, absolute maximum ratings, handling precautions, mounting instructions and ordering information.
| Threshold Current (I_TH) | 15 mA – 40 mA |
|---|---|
| Drive Current | 165 mA |
| Laser Forward Voltage (V_LF) | 2 – 2.5 V |
| Peak Optical Output Power | 20 mW CW |
| Center Wavelength Range | 1528.77 nm – 1610.06 nm |
| Side‑mode Suppression Ratio | 35 – 45 dB |
| Optical Isolation | ≥ 30 dB |
| Operating Case Temperature Range | -25 °C – 70 °C |
| Maximum Output Power (Class IIIb) | 40 mW |
The minimum fiber bend radius is 1.0 in. (25.4 mm).
The internal isolator attenuates reflected light by a minimum of 30 dB.
Each module delivers a peak optical output power of 20 mW CW.
