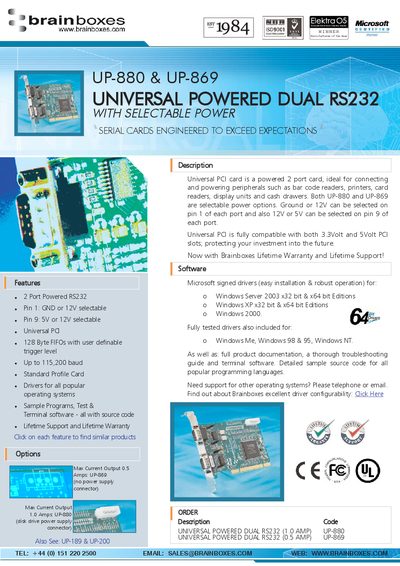

Universal PCI card is a powered 2 port card, ideal for connecting and powering peripherals such as bar code readers, printers, card readers, display units and cash drawers. Both UP-880 and UP-869 are selectable power options. Ground or 12V can be selected on pin 1 of each port and also 12V or 5V can be selected on pin 9 of each port. Universal PCI is fully compatible with both 3.3Volt and 5Volt PCI slots; protecting your investment into the future.
The UP-880 and UP-869 are universal PCI cards that provide two powered RS‑232 ports with selectable voltage on pins 1 and 9. They support both 3.3 V and 5 V PCI slots and include Microsoft‑signed drivers for a wide range of Windows versions and Linux.
The handbook details pinout, power options, FIFO size, UART type, supported baud rates and data formats, as well as warranty, lifetime support, and compliance information such as PCI‑SIG 3.0 and CE/FCC certifications.
| Maximum current output (UP-880) | 1.0 A |
|---|---|
| Maximum current output (UP-869) | 0.5 A |
| Pin 1 selectable power | GND or 12 V |
| Pin 9 selectable power | 5 V or 12 V |
| FIFO size | 128 Byte with user‑definable trigger level |
| UART type | 16950 UART |
| Maximum baud rate | 115 200 bps |
| Data bits | 5, 6, 7 or 8 |
| Parity options | Odd, Even, None, Mark, Space |
| Stop bits | 1, 1.5, 2 |
| Flow control | CTS/RTS, DTR/DSR |
| Power consumption (5 V) | 190 mA |
| Power consumption (12 V) | 12 mA |
| Weight | 0.097 kg |
| Dimensions | 85 mm × 125 mm |
| PCI compliance | PCI 3.0 compliant |
| Supported operating systems | Windows 98/NT4/2000/XP/Server 2003 (32/64‑bit), Linux |
Pin 1 can be set to GND or 12 V, and Pin 9 can be set to 5 V or 12 V.
The UP‑880 can supply up to 1.0 A, while the UP‑869 can supply up to 0.5 A.
Drivers are provided for Windows 98, NT4, 2000, XP, Server 2003 (both 32‑ and 64‑bit) and for Linux.
The card includes a 128‑byte FIFO with a user‑definable trigger level.
