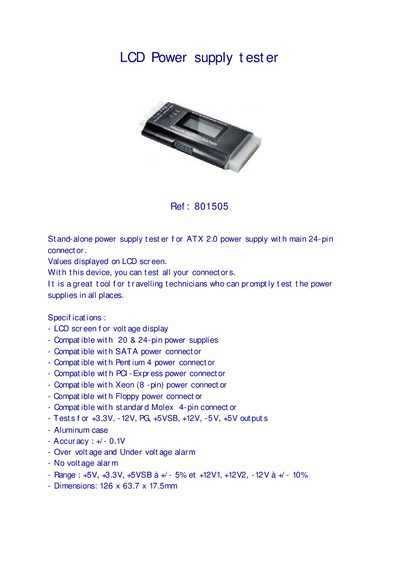

801505 LCD Power supply tester is a stand-alone power supply tester for ATX 2.0 power supply with main 24-pin connector. Values displayed on LCD screen. With this device, you can test all your connectors. It is a great tool for travelling technicians who can promptly test the power supplies in all places.
The LCD Power Supply Tester is a compact, stand‑alone device for quickly checking ATX 2.0 power supplies and their connectors. It displays voltage readings on an LCD screen and includes alarms for over‑ and under‑voltage conditions, making it useful for travelling technicians.
Key features include compatibility with 20 & 24‑pin ATX connectors, SATA, Pentium 4, PCI‑Express, Xeon 8‑pin, floppy and standard Molex 4‑pin connectors, an accuracy of ±0.1 V, and a lightweight aluminum case measuring 126 × 63.7 × 17.5 mm.
| Display | LCD screen |
|---|---|
| Connector compatibility | 20 & 24‑pin ATX |
| Connector compatibility | SATA |
| Connector compatibility | Pentium 4 |
| Connector compatibility | PCI‑Express |
| Connector compatibility | Xeon 8‑pin |
| Connector compatibility | Floppy |
| Connector compatibility | Molex 4‑pin |
| Voltage tests | +8.3V, -12V, PG, +5VSB, +12V, -5V, +5V |
| Accuracy | ±0.1 V |
| Dimensions | 126 × 63.7 × 17.5 mm |
It can test +8.3 V, -12 V, PG, +5 VSB, +12 V, -5 V and +5 V outputs.
The voltage readings are accurate to within ±0.1 V.
