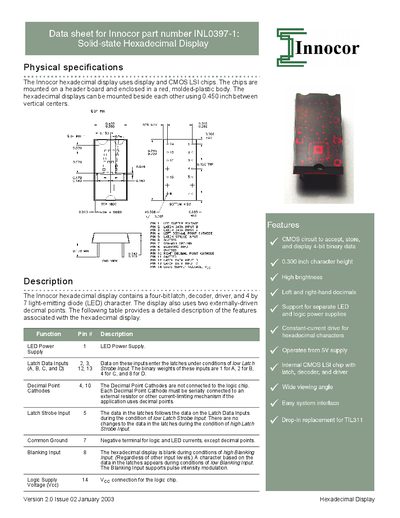

This document introduces Innocor's Hexadecimal Display product, including product physical specifications, function description, pin definition and other information.
The Innocor INLO397-1 is a solid‑state hexadecimal display built on a header board and enclosed in a red molded‑plastic body. It features four‑bit latches, a decoder, driver, 4×7 LED characters and two externally‑driven decimal points, with a 0.450‑inch vertical center spacing for side‑by‑side mounting.
The datasheet lists recommended supply voltages, LED currents, timing parameters and performance data such as luminous intensity and input voltage limits. Contact information for technical support and sales is also included.
| Decimal point current | 1.5 mA |
|---|---|
| High‑level input voltage | 2 V |
| Low‑level input voltage | 0.8 V |
The display includes two externally‑driven decimal points.
Each LED segment is driven at approximately 1.5 mA.
