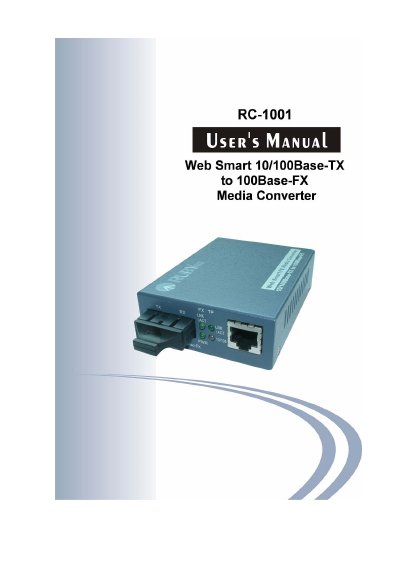

This document is the user manual of Web Smart 10/100Base-TX to 100Base-FX Media Converter, which introduces the features and characteristics of the product, installation method, Web management and other contents.
This manual explains how to install and configure the Web Smart RC-1001 10/100Base‑TX to 100Base‑FX media converter. It includes hardware setup, cable requirements, and power considerations, as well as detailed instructions for using the built‑in web‑based management interface to monitor and adjust port settings, VLANs, and OAM functions.
The document also provides troubleshooting guidance, a Q&A section for common issues, and a full list of technical specifications such as power consumption, environmental limits, and safety compliance. Appendices contain the hardware specifications and additional reference information.
| Power requirement | 5 VDC |
|---|---|
| Power consumption | 1.5 W |
| Fiber connector (RC‑1001) | SC, LC |
| Fiber connector (RC‑1001A) | SFP |
| Ambient temperature | 0 °C to 50 °C |
| Humidity | 5 % to 90 % |
| Dimensions (W×H×D) | 70.3 mm × 26.2 mm × 94 mm |
| Weight | 0.44 kg |
| Safety compliance | FCC Part 15 Class A & CE Mark |
| Shock test standard | IEC 60068‑2‑27 |
| Free‑fall test standard | IEC 60068‑2‑32 |
| Vibration test standard | IEC 60068‑2‑6 |
