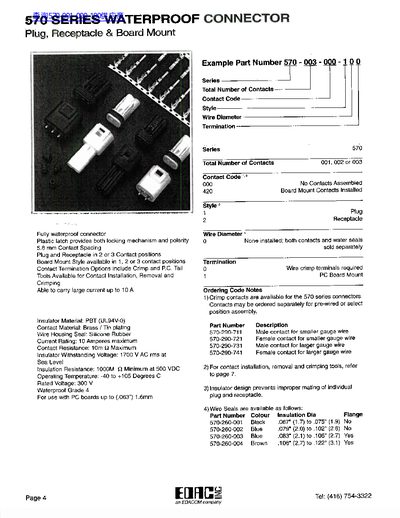

The 570 SERIES waterproof connector family offers plug, receptacle, and board‑mount styles with a fully waterproof design. Features include a plastic latch for locking and polarity, 5.8 mm contact spacing, and options for 2‑ or 3‑contact positions. The connectors are rated for up to 10 A current, 300 V, and operate from –40 °C to +105 °C, with a waterproof grade of 4 and an insulator withstand voltage of 1700 V AC rms.
Contact termination options include crimp and P.C. tail, with available tools for installation, removal, and crimping. Ordering codes specify contact numbers, styles, and wire seal options, and separate contacts can be ordered for pre‑wired or custom assemblies. The insulator material is PBT (UL94V‑0) and the wire housing seal is silicone rubber.
| Contact spacing | 5.8 mm |
|---|---|
| Current rating | 10 A max |
| Insulator material | PBT (UL94V‑0) |
| Contact material | Brass / Tin plating |
| Wire housing seal | Silicone Rubber |
| Insulator Withstanding Voltage | 1700 V AC rms at sea level |
| Insulation resistance | 1000 MΩ minimum at 500 VDC |
| Operating temperature | -40 °C to +105 °C |
| Rated voltage | 300 V |
| Waterproof grade | Grade 4 |
It can carry up to 10 amperes maximum.
The connector is rated Waterproof Grade 4.
Both crimp and P.C. tail terminations are offered.
It operates from –40 °C to +105 °C.
