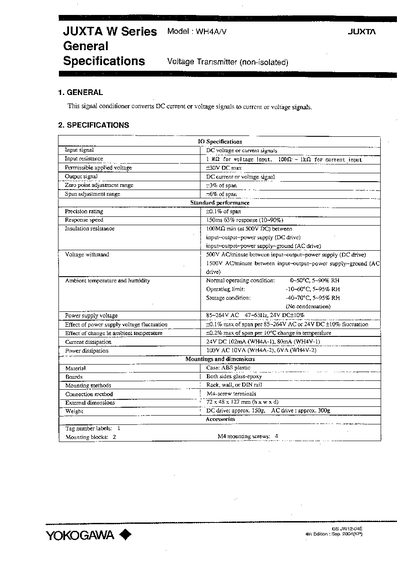

The JUXTA WH4A/V is a non‑isolated voltage transmitter that converts DC current or voltage signals to either current or voltage outputs. It supports dual output configurations (current or voltage) and provides adjustable zero‑point and span settings.
The document lists detailed electrical characteristics such as input resistance, permissible voltage, output ranges, precision, response speed, insulation resistance, and voltage withstand. Mechanical data include dimensions, weight, mounting options, and material construction, while environmental limits cover temperature and humidity ranges.
| Input signal | DC voltage or current signals |
|---|---|
| Input resistance | 1 MΩ (voltage) / 1 kΩ (current) |
| Permissible applied voltage | +30 V DC max |
| Output signal | DC current or voltage signal |
| Zero‑point adjustment range | ±3 % of span |
| Span adjustment range | ±6 % of span |
| Precision rating | ±0.1 % of span |
| Response speed | 150 ms (63 % response, 10‑90 %) |
| Insulation resistance | ≥100 MΩ at 500 V DC |
| Voltage withstand (DC drive) | 500 V AC/minute between input‑output‑PS |
| Voltage withstand (AC drive) | 1500 V AC/minute between input‑output‑PS‑ground |
| Operating temperature | 0 °C to 50 °C (normal), –10 °C to 60 °C (extended) |
| Power supply voltage | 85‑264 V AC 47‑63 Hz or 24 V DC ±10 % |
| Current dissipation (WH4A‑1) | 102 mA at 24 V DC |
| Power dissipation (WH4A‑2) | 10 VA at 100 V AC |
| External dimensions | 72 × 48 × 127 mm (H × W × D) |
| Weight (DC drive) | ≈150 g |
| Mounting methods | Rack, wall, or DIN rail |
| Output resistance (4‑20 mA) | 0 Ω – 7500 Ω |
It accepts DC voltage or current signals.
The unit can be powered from 85‑264 V AC (47‑63 Hz) or 24 V DC with a ±10 % tolerance.
Normal operation is allowed from 0 °C to 50 °C with 5‑90 % relative humidity.
It draws 102 mA at a 24 V DC supply.
