The document introduces a PCB mounting LED product with UL94 V-2 flammability rating and options for different spacer heights. The product has high reliability with a mean time between failure of up to 100,000 hours. The document lists LED products with different colors, lens types, voltages, currents, luminous intensities, etc.

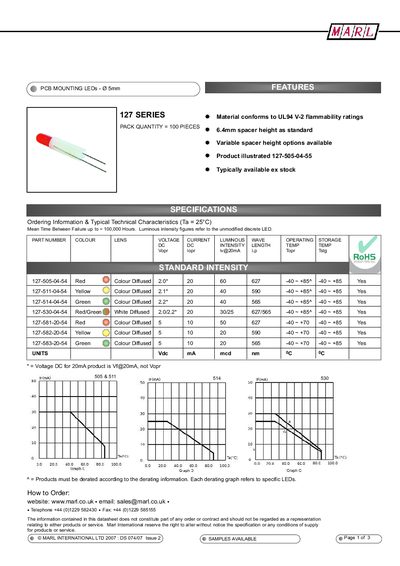

The 127 Series are PCB‑mounting LEDs offered in red, yellow and green colours with standard 6.4 mm spacer height and optional variable heights. The LEDs are supplied in packs of 100 pieces and meet UL94 V‑2 flammability ratings. Technical data such as voltage, current, luminous intensity and MTBF are listed for each part number.
The datasheet also includes material details (polycarbonate housing with UL94 V‑0 rating and a melt point of 290‑340 °C), reverse‑polarity options, bi‑colour operation instructions, and ESD handling recommendations. Ordering information, contact details and RoHS compliance statements are provided at the end of the document.
| Pack Quantity | 100 pieces |
|---|---|
| Flammability Rating | UL94 V‑2 |
| Standard Spacer Height | 6.4 mm |
| Mean Time Between Failure (MTBF) | up to 100,000 hours |
| Housing Material | Polycarbonate (UL94 V‑0, melt point 290‑340 °C) |
The standard spacer height is 6.4 mm, with variable height options also available.
The MTBF is up to 100,000 hours.
The housing is made of polycarbonate with a UL94 V‑0 flame retardancy rating.
