This document describes the technical specifications and features of ABCO axial inductors, including coil configurations, inductance values, tolerances, color coding, etc. These inductors are suitable for signal and power line applications, and they are highly reliable and can be produced in large volumes using efficient automated processes.

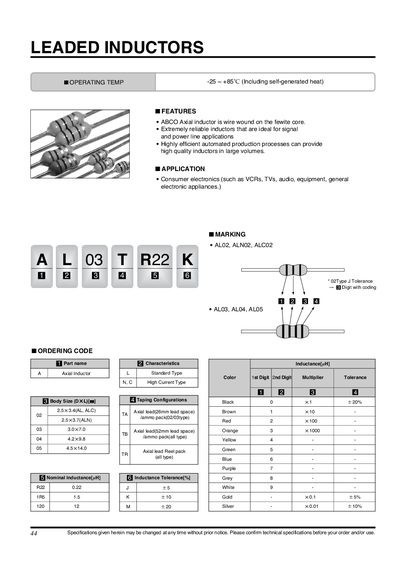

This datasheet provides detailed information on Leaded inductors, including their features, typical consumer‑electronics applications, and marking codes. It covers a range of axial inductor types such as ALO2, ALCO2, ALNO2, ALO3, ALO4, and ALOS.
The document lists ordering codes, physical dimensions, electrical characteristics (inductance, tolerance, self‑resonant frequency, current rating), and extensive reliability test results. Packing and shipping details are also included for each inductor type.
| Operating Temperature | -25 °C to +85 °C |
|---|---|
| Self‑Resonant Frequency (ALO2 example) | 0.22 MHz at 0.22 µH |
The inductors operate from –25 °C to +85 °C, including self‑generated heat.
They are suitable for consumer electronics such as VCRs, TVs, audio equipment, and general electronic appliances.
