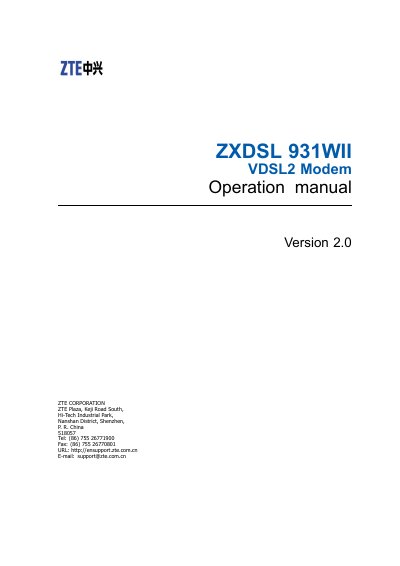

This manual introduces the basic functions and usage methods of the ZXDSL 931WII VDSL2 modem.
The ZXDSL 931WII is a VDSL2 access device that offers four 10/100Base‑T Ethernet ports and wireless user access via IEEE 802.11b/g. It supports ADSL/VDSL2 broadband services, multiple PPPoE sessions, and a range of security features such as WEP, WPA and WPA2.\n\nThe manual covers product introduction, hardware installation, LED status, WAN and LAN interface configuration, wireless and security settings, QoS, VPN, system logging, and troubleshooting. Detailed tables list specifications, configuration options, and protocol references to help users set up and manage the modem.
| Wireless Standards | IEEE 802.11b/g |
|---|---|
| Frequency Range | 2.40 GHz–2.4835 GHz |
| Maximum RF Power | 20 dBm |
| Ethernet Ports | Four 10/100Base‑T ports |
| Operating Temperature | 0 °C to 40 °C |
| PPPoE Sessions | Up to 8 per ADSL/VDSL2 |
| Wireless Security | 64‑bit/128‑bit WEP, 802.1x, WPA, WPA2 |
It provides four 10/100Base‑T Ethernet interfaces.
The device supports IEEE 802.11b and IEEE 802.11g.
The modem operates from 0 °C to 40 °C.
Up to eight PPPoE sessions are supported for both ADSL and VDSL2.
