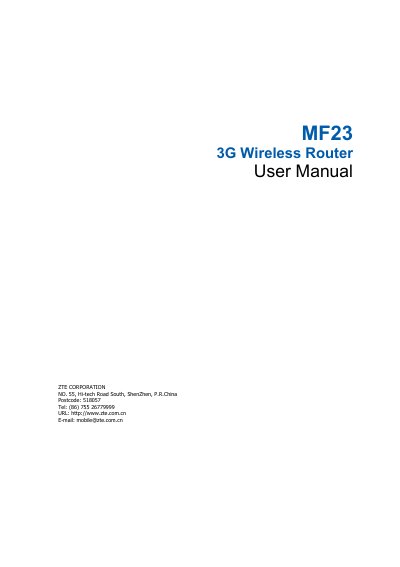

This document is the user manual for ZTE Corporation's MF23 3G wireless router, providing detailed instructions on how to use and configure the product.
The MF23 is a 3G wireless router designed for indoor home use. It supports GSM/GPRS/EDGE and UMTS/HSDPA/HSUPA networks, offering voice and data services through a single device.
The manual covers safety precautions, hardware description, LED indicator meanings, SIM card handling, power connection, Wi‑Fi configuration, WAN setup, and troubleshooting steps. It also lists technical specifications such as supported frequency bands, power requirements, dimensions, and weight.
| Network & Frequency Band | EDGE/GPRS/GSM: 850/900/1800/1900 MHz; HSUPA/HSDPA/UMTS: 850/1900/2100 MHz |
|---|---|
| Power Adapter Input | 100 V~240 V AC, 50/60 Hz |
| Power Adapter Output | +12 V DC, 700 mA |
| Maximum Data Service | HSUPA 2 Mbps uplink, HSDPA 7.2 Mbps downlink |
| Dimensions (W×H×D) | 138 mm × 102 mm × 27 mm |
| Weight | About 400 g |
Power off the router and remove the external power adapter before inserting or removing the (U)SIM card to avoid damage.
The POWER LED shows the external power status, 3G indicates RF signal quality, WIFI shows Wi‑Fi operation, PPP shows Internet connection, and other LEDs reflect phone and data activity.
Move the router to a location with better reception, such as near a window, because blinking indicates poor RF signal.
