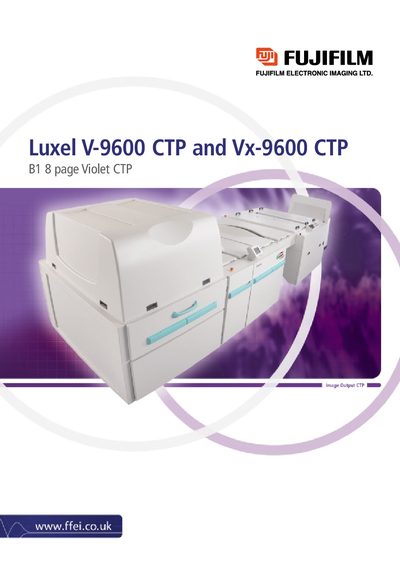

The Luxel V-9600 CTP and Vx-9600 CTP are B1 8 page Violet CTP devices that are fast and efficient.
This manual describes the Luxel V‑Series B1 8‑page violet CTP platesetters, including the V‑9600 CTP and Vx‑9600 CTP models. It covers product features such as high‑speed laser imaging, modular configurations, plate handling options, and the integrated Celebrant workflow suite.
The document also provides detailed technical specifications, installation guidance, operating procedures, and service information such as laser pen life, electrical requirements, and dimensions for each configuration (manual, semi‑automatic, and fully‑automatic).
| Plate thickness range | 0.15 mm – 0.30 mm |
|---|---|
| Maximum plate size (V‑9600 CTP) | 1158 mm × 934 mm |
| Maximum imaging resolution | 3657 dpi |
| Laser pen life | over 5 000 imaging hours (≈5 years) |
| Electrical requirements | 230 V ± 10 % AC, 50/60 Hz, single phase, 16 A |
The laser pen is rated for more than 5 000 imaging hours, which is about five years of typical use.
It accepts plates from 0.15 mm up to 0.30 mm thickness.
Up to 300 plates can be loaded on‑line in the fully automatic version.
The machines can output up to 3657 dpi.
