The document provides precautions for installation, maintenance, and use of the product, as well as specifications and component parts. The product is a valve with manual flushing function, suitable for air compressors. It is important to flush out any debris and discharge accumulated drainage before installation, and to ensure the drain port is facing down. Additionally, a stop valve should be provided for maintenance and inspection purposes. The product operates on a power source ranging from 100VAC to 240VAC or 12VDC to 24VDC, with a maximum operating pressure of 1.5MPa, and is suitable for air medium. It is available in different specifications and models for selection.

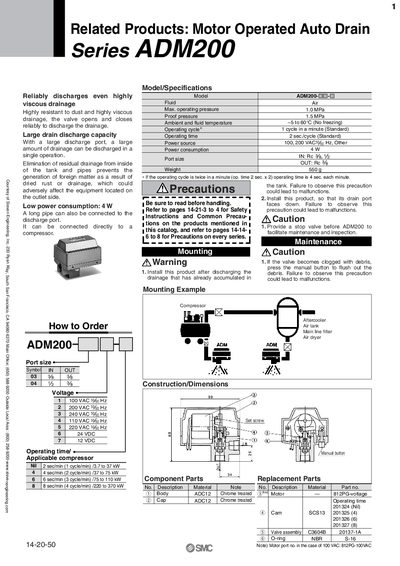

The ADM200 series motor‑operated auto drain reliably discharges highly viscous drainage and is highly resistant to dust. Its large discharge port allows a high volume of fluid to be removed in a single operation, preventing residual drainage that can cause rust or foreign matter.
The valve operates on 100‑200 VAC (50/60 Hz) with a power consumption of only 4 W. It offers a maximum operating pressure of 1.0 MPa, proof pressure of 1.5 MPa, and works in ambient temperatures from –5 °C to 60 °C. The unit weighs 550 g and can be mounted directly to a compressor or connected to a long pipe.
| Maximum operating pressure | 1.0 MPa |
|---|---|
| Proof pressure | 1.5 MPa |
| Ambient and fluid temperature range | -5 °C to 60 °C |
| Operating cycle | 1 cycle per minute (standard) |
| Operating time per cycle | 2 sec per cycle (standard) |
| Power source | 100 V/200 V AC 50‑60 Hz |
| Power consumption | 4 W |
| Weight | 550 g |
The ADM200 consumes 4 W of power.
The maximum operating pressure is 1.0 MPa.
It operates at one cycle per minute as the standard setting.
It can operate between –5 °C and 60 °C without freezing.
