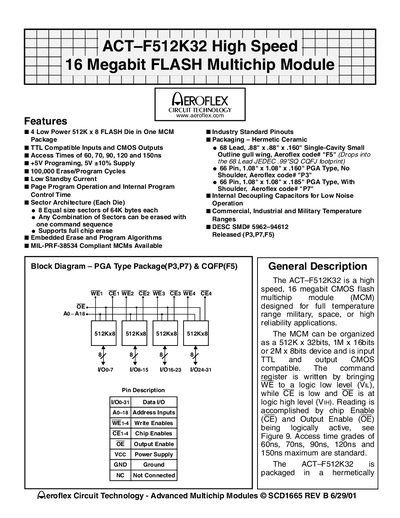

The ACT-F512K32 is a high‑speed 16‑Megabit CMOS flash multichip module designed for military, space, and industrial applications. It can be organized as 512K × 32 bits or 1M × 16 bits and operates over a temperature range of –55 °C to +125 °C.
Key features include TTL‑compatible inputs, CMOS outputs, selectable access times from 60 ns to 150 ns, 5 V programming voltage, 100 k write/erase cycles, low standby current (6.5 mA), and hermetic ceramic packaging options (68‑lead gull‑wing or 66‑pin PGA).
| Memory density | 16 Megabit |
|---|---|
| Access times | 60 ns, 70 ns, 90 ns, 120 ns, 150 ns |
| Supply voltage range (Vcc) | -2.0 V to +7.0 V |
| Endurance (write/erase cycles) | ≥ 100 000 cycles |
| Operating temperature range | -55 °C to +125 °C |
| Programming voltage | +5 V (±10 %) |
| Package options | 68‑lead .88" × .88" × .160" gull‑wing; 66‑pin .88" × .88" × .160" PGA |
The device operates with a Vcc supply voltage from –2.0 V to +7.0 V.
It is rated for at least 100 000 write/erase cycles.
The module supports access times of 60 ns, 70 ns, 90 ns, 120 ns, and 150 ns.
