ACDM series advanced CMOS logic buffered 5-tap delay modules, 74ACT type input is compatible with TTL, outputs can source / sink 24mA

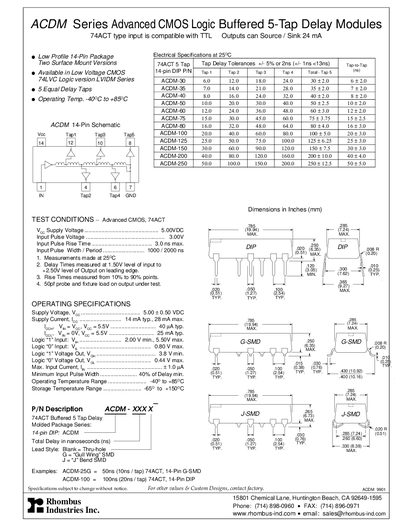

This document describes the ACDM Series Advanced CMOS Logic Buffered 5‑Tap Delay Modules, compatible with 74ACT type inputs and TTL outputs. It lists the available low‑profile 14‑pin DIP and surface‑mount packages, tap delay values, and example part numbers such as ACDM‑25G and ACDM‑100.
Key electrical specifications are given, including supply voltage, current consumption, input and output voltage levels, timing characteristics, and operating temperature ranges. Contact information for Rhombus Industries is provided at the end of the sheet.
| Supply Voltage | 5.00 VDC ±0.50 V |
|---|---|
| Supply Current | 14 mA typ., 28 mA max. |
| Logic "1" Input Voltage | 5.50 V max |
| Logic "0" Input Voltage | 0.80 V max |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -65 °C to +150 °C |
| Example Total Delay | ACDM‑25G = 50 ns (10 ns/tap) |
The module operates from a 5.00 VDC supply with a tolerance of ±0.50 V.
They are rated for operation from –40 °C up to +85 °C.
Logic "1" input voltage is up to 5.50 V, and logic "0" input voltage is up to 0.80 V.
Typical supply current is 14 mA, with a maximum of 28 mA.
