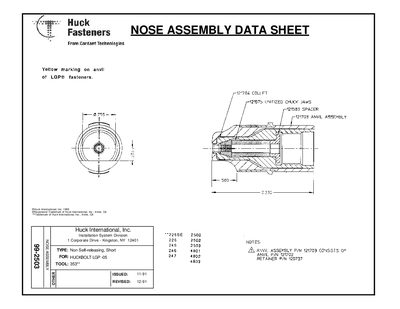

Huck Nose Assembly Data Sheet

About this manual

This data sheet describes the Huck Nose Assembly fastener, listing its component part numbers such as the anvil assembly (P/N 121703) and related hardware. It identifies the assembly type as a non‑self‑releasing, short nose assembly.

The document also outlines maintenance procedures, safety warnings, and recommended tools for both hydraulic and air‑powered versions. It includes cautions about disconnecting power sources and setting air‑supply regulator pressure to 90 psi (620 kPa).

What's inside

• Nose Assembly Maintenance
• WARNING
• Caution
• Tools that use hydraulic source
• Tools that use air source
• Disassembly/assembly
• Collet extension
• Anvil
• Notes

Specifications

Frequently asked questions

What must be done before performing maintenance on the tool?

The POWERIG Hydraulic Unit must be disconnected from electrical or air supply before any maintenance or adjustments.

What pressure should the air supply regulator be set to?

The air supply regulator should be set at 90 psi (620 kPa).
