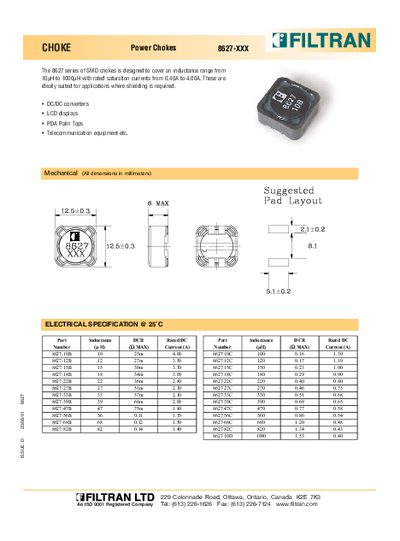

This document is about the product information of the 8627 series SMD inductors, including product features, specifications and parameters
The 8627 series of SMID chokes is designed to cover an inductance range from UH to 1000 µH with rated saturation currents from 0.40 A to 4.00 A. These chokes are ideal for applications where shielding is required, such as DC‑DC converters, LCD displays, PDA Palm Tops and telecommunication equipment.
Mechanical dimensions are provided in millimetres, and the electrical specifications are listed for operation at 25 °C. The sheet also includes suggested pad layout and contact information for Filtran Ltd.
| Inductance range | UH to 1000 µH |
|---|---|
| Rated saturation current | 0.40 A to 4.00 A |
| Mechanical dimensions | All dimensions in millimetres |
They are ideally suited for applications where shielding is required, such as DC‑DC converters, LCD displays, PDA Palm Tops and telecommunication equipment.
The inductance range is from UH to 1000 µH.
