The document describes a non-contact infrared temperature sensor with an environmental rating of IP65 (NEMA-4). The sensor has an ambient temperature range of -20 to 75°C, a storage temperature range of -20 to 85°C, and a relative humidity range of 10-95%. It features 0-5V or 0-10V voltage outputs, with the option for RS232 digital output or programmable functional input. The sensor has a scalable temperature range, a spectral range of 8-14μm, an optical resolution of 10:1, and a 1.2mm CF lens. It has a fast response time and high accuracy, making it suitable for industrial temperature measurement and monitoring.

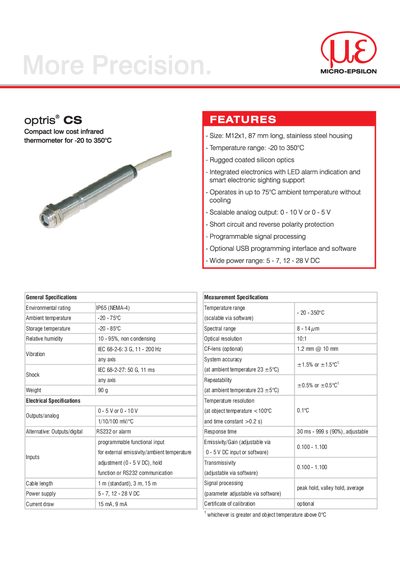

The Optris CS is a compact, low‑cost infrared thermometer designed for rugged use. It measures temperatures from -20 °C to 350 °C, operates in ambient temperatures up to 75 °C without cooling, and features a stainless‑steel M12×1 housing. The sensor provides scalable analog output (0‑10 V or 0‑5 V) and optional digital RS232 or USB interfaces for programming and data logging.
Key specifications include a spectral range of 8‑14 µm, optical resolution of 10:1, weight of 90 g, and a wide power supply range (5‑7 V, 12‑28 VDC). Accessories such as mounting brackets, CF‑lenses, and software for USB programming and thermal data logging are supplied. The device complies with IP65 (NEMA‑4) environmental rating and offers short‑circuit and reverse‑polarity protection.
| Temperature range | -20 to 350 °C |
|---|---|
| Ambient operating temperature | up to 75 °C |
| Power supply | 5‑7 V, 12‑28 VDC |
| Analog output | 0‑10 V or 0‑5 V |
| Response time | 30 ms – 999 s (90 %) |
| Spectral range | 8‑14 µm |
| Weight | 90 g |
It measures temperatures from -20 °C to 350 °C.
The sensor can be powered from 5‑7 V or from 12‑28 VDC.
It offers an optional USB programming interface with software, as well as digital RS232 or analog inputs.
The response time ranges from 30 ms up to 999 s (90 % of measurements).
