This file is about the product information of 80.010.4000.0, including the rated voltage, connection method, current capacity, overload protection and other information

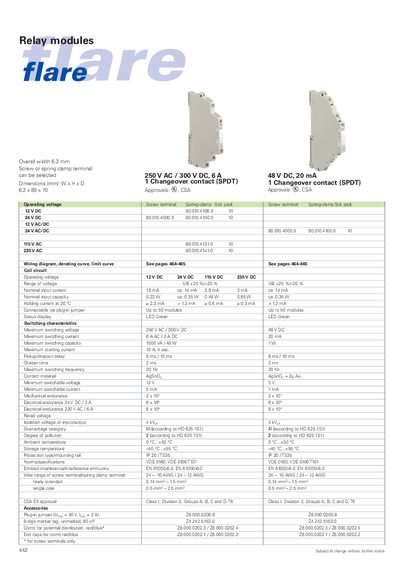

The handbook details the physical dimensions, electrical ratings, and wiring options for Flare relay modules. It includes overall width, module size, operating voltage ranges, and contact material information.
Additional sections cover mechanical and electrical endurance, temperature limits, IP rating, approvals, and accessory options such as plug‑in jumpers and end caps. Wiring diagrams and characteristic curves are also provided.
| Overall width | 6.2 mm |
|---|---|
| Dimensions | 6.2 x 89 x 70 mm |
| Operating voltage | 12V DC |
| Electrical endurance (DC) | 24 V DC / 2 A |
| Electrical endurance (AC) | 230 VAC / 6 A |
| Rated voltage | 250 VAC / 300 V DC, 6 A |
| IP rating | IP 20 |
| Approvals | CSA EX |
| Operating temperature range | -40 °C … 455 °C |
The overall width is 6.2 mm.
Supported operating voltages include 12 V DC, 24 V DC, 12 V AC/DC, 24 V AC/DC, and 230 V AC.
The modules have CSA EX approval.
The modules are rated IP 20.
