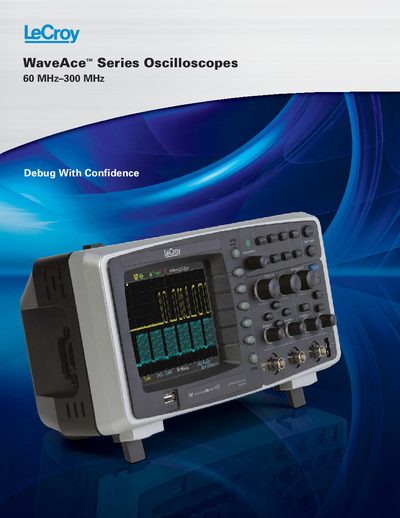

WaveAce™ Series Oscilloscopes, 60MHz–300MHz, let you debug with confidence. The WaveAce™ Series Oscilloscopes come with all the tools and features you need to debug, including 60MHz, 100MHz, 200MHz and 300MHz bandwidths, up to 2GS/s sample rate, long waveform memory and advanced triggering.
The WaveAce™ Series Oscilloscopes offer bandwidths from 60 MHz to 300 MHz, sample rates up to 2 GS/s, and long waveform memory (4 kpts/Ch or 9 kpts/Ch interleaved). All models include a 5.7" color display, 32 automatic measurements, advanced triggering, and USB connectivity for easy data transfer and remote control.
The handbook also details connectivity options (front‑panel USB host, rear‑panel USB device, RS‑232), internal storage capacity, acquisition modes, and ordering information for each model. Physical dimensions, weight, and included accessories such as passive probes and EasyScope PC software are listed for quick reference.
| Sample Rate | 2 GS/s (interleaved) |
|---|---|
| Display | 5.7" color, 320 × 240 resolution |
| Input Channels | 2 |
| Vertical Resolution | 8‑bits |
| Probes | 10:1, 1:1 switchable passive probe (one per channel) |
| Shipping Weight | 2.3 kg (5 lb) |
All WaveAce models have two input channels.
The WaveAce includes a front‑panel USB host port, a rear‑panel USB device port, and an RS‑232 port for remote control and data transfer.
The WaveAce powers up and is ready for use in under 10 seconds.
