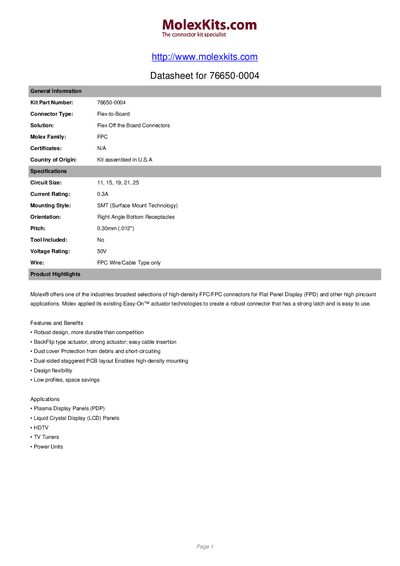

This document describes the features and characteristics of the Molex 76650-0004 Flex-to-Board connector kit, including its robust design, easy-to-use BackFlip actuator, dust cover protection, and dual-sided staggered PCB layout. The connector is suitable for flat panel display (FPD) and other high pin count applications such as plasma display panels (PDP), liquid crystal display (LCD) panels, HDTV, TV tuners, and power units.
The 76650-0004 kit is a Flex‑to‑Board connector solution from Molex, designed for high‑density FFC/FPC applications such as flat‑panel displays. It includes a range of Easy‑On™ actuated FPC connectors with various circuit counts and a bill of materials for assembly.
Key specifications include multiple circuit sizes (11‑25), a 0.3 A current rating, 50 V voltage rating, SMT mounting, right‑angle bottom receptacles, and a 0.30 mm pitch. The kit is assembled in the U.S.A and does not include a insertion tool.
| Circuit Size | 11, 15, 19, 21, 25 |
|---|---|
| Current Rating | 0.3 A |
| Mounting Style | SMT (Surface Mount Technology) |
| Orientation | Right Angle Bottom Receptacles |
| Pitch | 0.30 mm (.012") |
| Voltage Rating | 50 V |
| Tool Included | No |
| Connector Type | Flex-to-Board |
The kit offers connectors with 11, 15, 19, 21, and 25 circuits.
Each connector is rated for 0.3 A.
No, the kit does not include a tool.
