The AudioJoG(TM) Pro 8 is a connector idenitifer released by AudioJoG(TM) company. It can identify and test a variety of professional audio, lighting and digital network cable connectors. It has four modes of operation: manual, automatic, quick and automatic double ended.
The AudioJoG Pro 8 is a versatile cable tester designed for professional audio, lighting, and digital network cables. It can identify connector pins, test continuity, short circuits, open circuits, and crossed wires, and it stores known good cable details for rapid comparison.

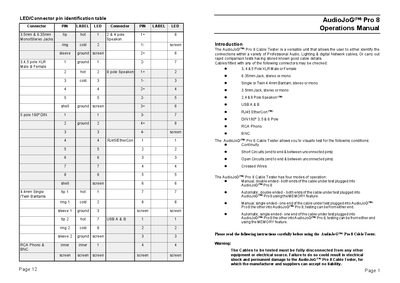

The manual explains how to install a 9 V PP3 battery, describes the four testing modes (manual double‑ended, manual single‑ended, automatic double‑ended, automatic single‑ended), and provides step‑by‑step procedures for each mode, including LED indications and how to use the MEMORY feature.
| Battery type | 9 V PP3 (not supplied) |
|---|---|
| Power‑down inactivity time | 15 minutes |
| LED count | 9 LEDs (8 pins + screen) |
It requires a 9 V PP3 battery, which is not supplied with the unit.
After 15 minutes of inactivity the tester flashes the PASSED, FAILED & MEMORY LEDs and can be reset by pressing the TEST button or power‑cycling the unit.
The tester uses two rows of nine LEDs, covering eight connector pins plus a screen/ground indicator.
