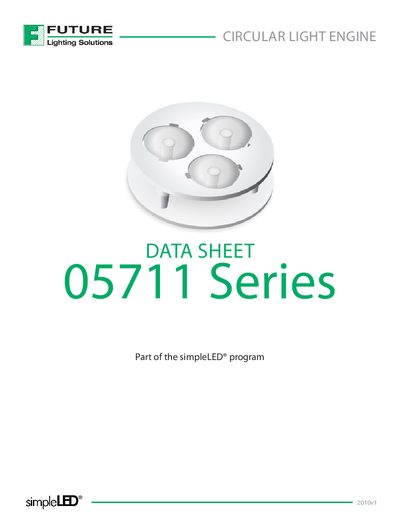

This document is the datasheet of Futurelighting Solutions' 05711 series light engines. The light engines in the series are composed of 3 high-power Luxeon Rebel LEDs, providing customers with flexibility to select the optimal light source for their applications. Customers can modify the simpleLED light source by selecting the Luxeon Rebel LED, optic, and connector to best suit their needs.
The 05711 Series Circular Light Engine is part of the simpleLED® program and combines three high‑power LUXEON Rebel LEDs. It offers configurable optics, connectors and colour‑temperature options for flexible lighting designs.
The datasheet details mechanical dimensions, electrical parameters, environmental limits and thermal management guidelines, as well as ordering information and accessory options for interconnection to LED drivers.
| Diameter | 45 mm |
|---|---|
| Source Type | LUXEON Rebel |
| Connector | Tyco mini CT (2106091-1) |
| Thermal Resistance (junction to PCB) | 21 K/W |
| Forward Voltage @350 mA (25 °C) | 7.6 V – 12 V |
| Power Consumption @350 mA | 2.7 W – 4.2 W |
| Storage Temperature | -40 °C to +70 °C |
| PCB Temperature Range | -20 °C to +80 °C |
It comes with a 3‑year manufacturer (Rena) warranty.
The engine uses a Tyco mini CT connector (part number 2106091‑1).
Typical applications include under‑cabinet lighting, cove lighting, accent lighting, display case lighting and display lighting.
