The PED 45 Series consists of miniature printed‑circuit‑mount solenoids offered in two frame versions, D and C. Both versions operate from DC voltage and are suitable for pulse‑drive applications, with a low profile of 12 mm height.

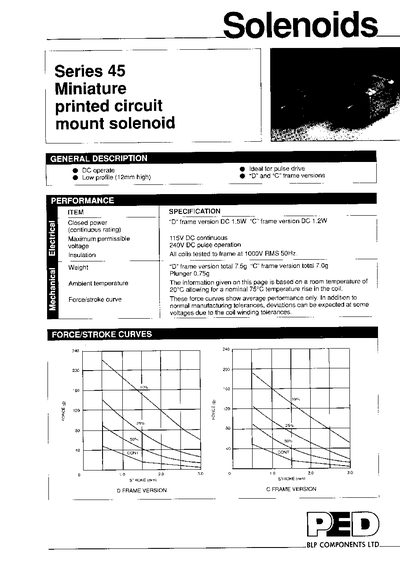

The leaflet provides performance specifications, force‑stroke curves, and mechanical dimensions for each frame version, along with safety and handling notes from BLP Components Ltd.
| Closed power (D frame) | 1.5 W DC |
|---|---|
| Maximum permissible voltage (continuous) | 115 V DC |
| Insulation test rating | 1000 V RMS 50 Hz |
| Weight (D frame) | 7.5 g |
The D‑frame version is rated at 1.5 W DC continuous power.
All coils are tested to 1000 V RMS at 50 Hz.
