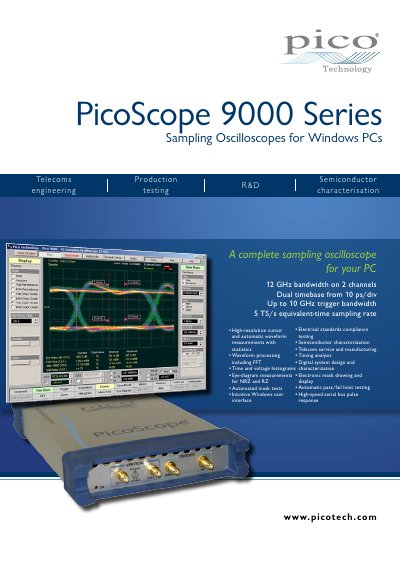

The PicoScope 9000 Series PC Sampling Oscilloscopes are a complete sampling oscilloscope for your PC, with high-resolution cursors and automatic waveform measurements including statistics.
This manual introduces the PicoScope 9000 Series sampling oscilloscopes, highlighting their high‑resolution cursor, automatic measurements, FFT processing, eye‑diagram analysis, and built‑in trigger capabilities up to 12 GHz. It lists the accessories supplied, such as SMA adapters, USB and LAN cables, and power supplies for various regions.
Detailed sections cover mathematical functions, histogram and mask testing, clock recovery, hardware specifications, and installation instructions. The document also includes a full specifications table, ordering information, and compliance notes for professional use in telecom, semiconductor, and timing analysis applications.
| Channels (vertical) | 2 (simultaneous acquisition) |
|---|---|
| Bandwidth | DC to 12 GHz |
| Pulse response rise time | 29.2 ps |
| Input impedance | 50 Ω ± 1 Ω |
| Timebase range | 10 ps/div to 2 ms/div |
| ADC resolution | 16 bits |
| Trigger RMS jitter | Maximum 3.5 ps + 20 ppm of delay setting |
| Power supply | +6 VDC ± 5% (1.9 A, 2.3 A for PicoScope 9211) |
| Operating temperature | +5 °C to +40 °C |
| Dimensions | W 170 mm × D 255 mm × H 40 mm |
The oscilloscope provides a bandwidth of up to 12 GHz.
It can acquire two channels simultaneously.
The trigger RMS jitter is limited to a maximum of 3.5 ps plus 20 ppm of delay setting.
