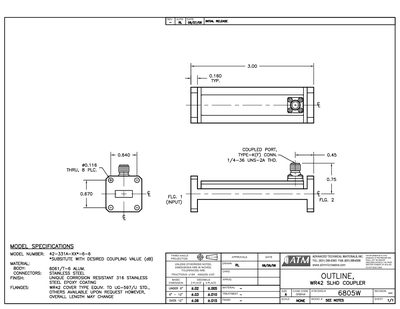

This document provides the technical specifications for the ATM 6805W coupler. It lists the model number, material construction, connector type, finish, and cover type, along with dimensional notes and tolerances.
Key information includes the use of 6061/T‑6 aluminum body, a corrosion‑resistant 316 stainless steel epoxy coating, a Type‑K(F) coupled port connector (1/4‑36 UNS‑2A THD), and a WR42 cover type equivalent to UG‑597/U standard. Additional notes cover optional configurations and overall length variations.
| Material | 6061/T‑6 aluminum |
|---|---|
| Finish | Corrosion resistant 316 stainless steel epoxy coating |
| Connector Type | Type‑K(F) coupled port, 1/4‑36 UNS‑2A THD |
| Cover Type | WR42 equivalent to UG‑597/U standard |
The coupler uses a Type‑K(F) coupled port connector, 1/4‑36 UNS‑2A THD.
It has a WR42 cover type equivalent to the UG‑597/U standard.
