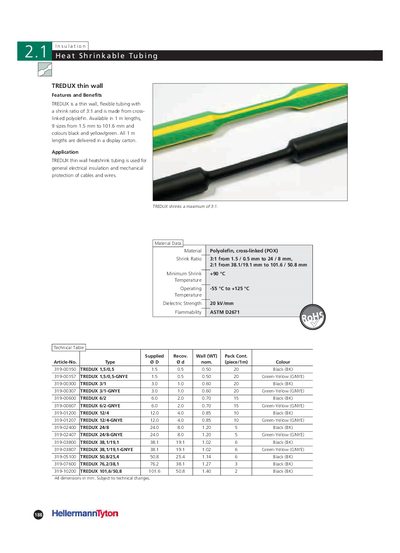

The document describes the features and characteristics of TREDUX products. TREDUX is a thin wall, flexible tubing with a 3:1 shrink ratio, made from cross-linked polyolefin.
The TREDUX thin‑wall heat‑shrink tubing is a flexible, cross‑linked polyolefin product with a 3:1 shrink ratio. It is supplied in 1 m lengths, available in nine sizes from 1.5 mm to 101.6 mm and in black or green‑yellow colors, packaged in display cartons.
Designed for general electrical insulation and mechanical protection, TREDUX operates from –55 °C to +125 °C, provides a dielectric strength of 20 kV/mm, and meets ASTM D2671 flammability requirements.
| Material | Polyolefin, cross‑linked (POX) |
|---|---|
| Shrink Ratio | 3:1 (1.5 mm‑0.5 mm to 24 mm‑8 mm), 2:1 (38.1 mm‑19.1 mm to 101.6 mm‑50.8 mm) |
| Minimum Shrink Temperature | +90 °C |
| Operating Temperature | -55 °C to +125 °C |
| Dielectric Strength | 20 kV/mm |
| Flammability | ASTM D2671 |
It provides a 3:1 shrink ratio for sizes from 1.5 mm‑0.5 mm up to 24 mm‑8 mm, and a 2:1 ratio for larger sizes up to 101.6 mm‑50.8 mm.
It can be used from –55 °C up to +125 °C.
The tubing has a dielectric strength of 20 kV/mm.
It meets the ASTM D2671 flammability standard.
