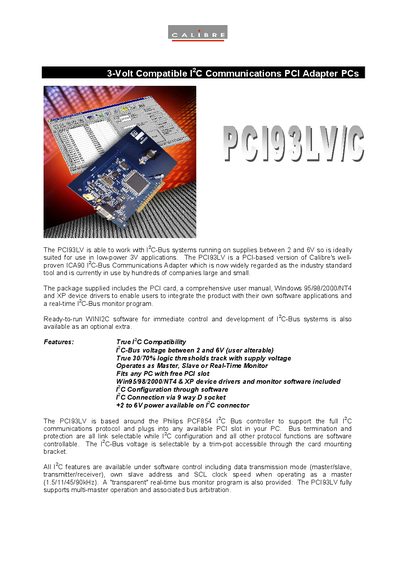

PCI93LV is a PCI bus I2C bus communication adapter that supports 2 to 6V voltage and is suitable for low-power 3V applications.
The Calibre PCI93LV is a PCI‑card I²C communications adapter that fits any standard PCI slot and works with I²C‑Bus systems powered between 2 V and 6 V, making it suitable for low‑power 3 V applications.
It includes Windows 95/98/2000/NT4/XP drivers, a real‑time bus monitor program, and software libraries for custom applications. The adapter can be configured as master, slave, transmitter, receiver, or monitor, with adjustable bus voltage and a 9‑way D‑socket for power and signal connections.
| PCI slot compatibility | Fits any PCI slot |
|---|---|
| I²C‑Bus voltage range | Adjustable between 2 V and 6 V |
| Factory preset voltage | 3.3 V for low‑voltage devices |
| Operating modes | Master, Slave, Transmitter, Receiver, Real‑Time Monitor |
| Supported operating systems | Windows 95/98/2000/NT4 & Windows XP |
| Connector type | 9‑way D socket |
| Power output on connector | +2 V to 6 V |
The adapter includes device drivers for Windows 95, 98, 2000, NT4 and Windows XP.
Yes, it can operate as Master, Slave or Real‑Time Monitor.
The bus voltage can be set between 2 V and 6 V.
Yes, a ready‑to‑run real‑time monitor program is included.
