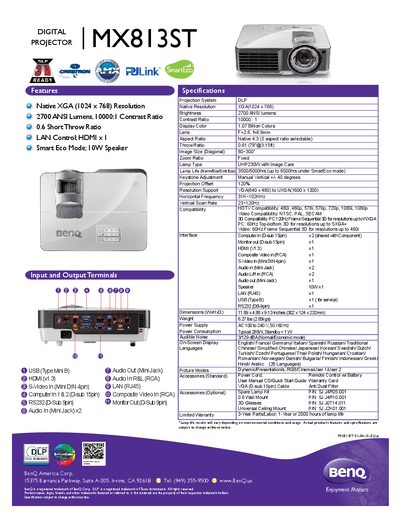

The BenQ MX813ST is a DLP projector with a native resolution of XGA (1024 x 768), 2700 ANSI lumens, 10000:1 contrast ratio and 0.6 short throw ratio. It features LAN control, HDMI x 1, Smart Eco Mode and 10W speaker.
The MX813ST is a short‑throw digital projector with native XGA (1024 × 768) resolution, 2700 ANSI lumens brightness, and a 10000:1 contrast ratio. It offers a range of connectivity options including HDMI, LAN, USB, RS‑232, and various video inputs, and supports multiple video standards and 3D modes.
The manual covers installation guidance, wiring diagrams, feature descriptions, dimensions, power requirements, on‑screen display language options, accessory lists, warranty information, and a wall‑mount chart to help users set up and operate the projector safely and efficiently.
| Native Resolution | XGA (1024 × 768) |
|---|---|
| Brightness | 2700 ANSI lumens |
| Contrast Ratio | 10000 : 1 |
| Lamp Life | 3500/5000 hrs (up to 6500 hrs in SmartEco mode) |
| Throw Ratio | 0.61 (78" @ 3.15 ft) |
| Weight | 6.27 lbs (2.85 kg) |
| Power Consumption | Typical 285 W, Standby <1 W |
| Dimensions (W × H × D) | 11.89 × 4.88 × 9.13 inches (302 × 124 × 232 mm) |
The lamp life is rated at 3500 hrs (normal) / 5000 hrs (eco) and can reach up to 6500 hrs in SmartEco mode.
The throw ratio is 0.61, allowing a 78‑inch image from a distance of 3.15 ft.
The on‑screen display supports 28 languages, including English, French, German, Italian, Spanish, Russian, Chinese (traditional and simplified), Japanese, Korean, and many others.
