AJA HDP2 Video and Audio Converter Installation and Operation Guide

This document introduces the functions and usage methods of AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter.

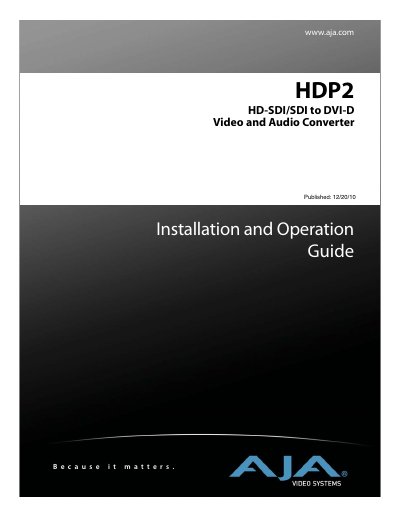

AJA HDP2 Video and Audio Converter Installation and Operation Guide - cover page
Brand
HDP2
Category
Other
Document type
Installation Guide
Language
English
Pages
20
File format
PDF
File size
1009 KB
Published
03 May, 2012
Updated
30 September, 2023
MD5 checksum
8DA005708D0E4F51F1C35531F882E131
PDF
AJA HDP2 Video and Audio Converter Installation and Operation Guide PDF

About this manual

The AJA HDP2 is a compact HD‑SDI/SDI to DVI‑D converter that delivers video and audio to digital displays such as LED, LCD, DLP and plasma monitors.

This Installation and Operation Guide explains how to connect the unit, configure scaling and timing via the USB‑based Mini Config software, use the audio outputs, and follow safety, compliance and warranty procedures.

What's inside

  • Introduction
  • Monitor Compatibility
  • VESA and CEA Timing
  • Video Scaling and De‑interlacing
  • USB Control and Setup
  • I/O Connections
  • Installing Mini Config (PC)
  • Installing Mini Config (Mac)
  • Compliance and Safety
  • Warranty

Specifications

HDMI versionHDMI 1.3a
Embedded audio channels8 channel embedded audio over HDMI
Analog audio output2 channel RCA analog audio
Maximum video resolutionup to 1920×1200 and 1080p
Scaling modeautomatic 1:1 scaling when monitor matches input
Warranty5‑year limited warranty

Frequently asked questions

How do I install the Mini Config software on a Windows PC?

Insert the supplied CD, run the “MiniInstaller” application, and follow the Setup Wizard prompts to install the Mini Config software.

Download PDF (1009 KB)
