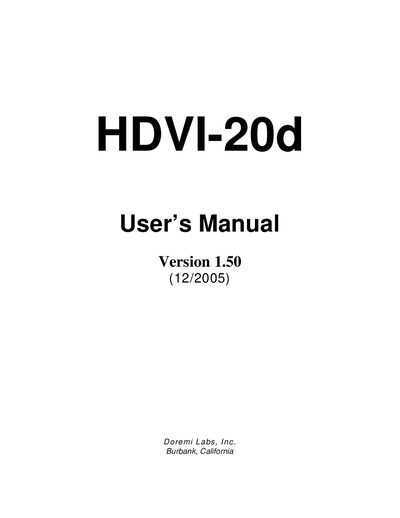

This manual introduces the basic operation methods, usage methods and precautions of the Doremi HDVI-20d product.
The HDVI-20d is a universal DVI‑D converter and switcher that accepts SDI, HD‑SDI, DVI‑D and DVI‑A inputs and outputs digital RGB DVI‑D signals. It automatically detects input scan rates and supports a wide range of video formats, including PAL, NTSC, 720p, 1080p, 1080i and 2K, and matches the resolution of connected DVI‑D monitors.
The manual covers installation, OSD and remote‑control functions, resolution and frequency settings, firmware upgrade, recommended LCD monitors, detailed specifications, warranty information and software licensing. It also provides troubleshooting steps and wiring diagrams for the RS422‑PC cable.
| Supported Input Formats | SDI, HD‑SDI, DVI‑D, DVI‑A (analog RGB) |
|---|---|
| Supported Video Formats | PAL, NTSC, 720p, 1080p, 1080i, 2K (2048×1080) |
| Output Resolution | Up to 1920×1200 progressive scan and 1080i |
| Connector Type | DVI‑D, Female, compliant to DVI 1.0 |
| Power Supply | External power adapter with locking connector |
It accepts SDI, HD‑SDI, DVI‑D and DVI‑A inputs and can handle PAL, NTSC, 720p, 1080p, 1080i and 2K video formats.
Resolution can be set via the OSD to Auto or any of the listed presets (e.g., 1024×768, 1280×720, 1920×1080) or by using the remote TV/Video + number commands.
The default frequency is 60 Hz, but it can be changed to 48 Hz, 50 Hz or forced to Frame Sync.
Doremi recommends the BenQ FP231W (1920×1200) and notes that the Viewsonic VP2290b requires the output to be forced to 1920×1200; Apple Cinema displays (except the 30”) are also supported.
