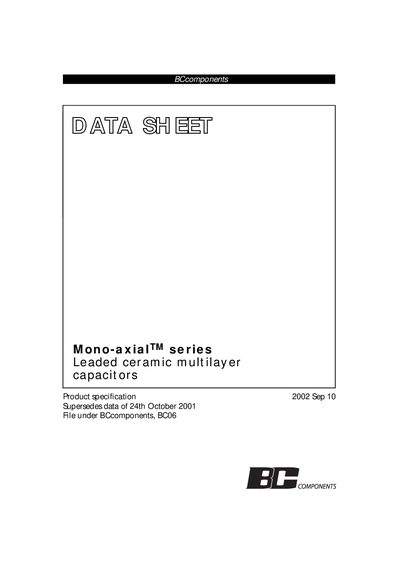

This data sheet is about BCcomponents Mono-axialTM series leaded ceramic multilayer capacitors products specification, including features, applications, description and quick reference
The Mono-axial series from BCcomponents provides leaded ceramic multilayer capacitors in four dielectric types (NPO, X7R, Z5U, Y5V) for commercial and industrial applications. The document lists features such as high capacitance per unit volume, low cost, and suitability for automatic insertion equipment.
Technical data includes capacitance ranges from 10 pF to 5600 pF, rated DC voltages up to 100 V, tolerance options, mechanical dimensions of the tape carrier, and detailed ordering information using clear‑text or 12NC codes. Reel and ammopack packaging specifications are also provided.
| Capacitance range | 10 pF to 5600 pF (100 pF‑0.22 µF, 1000 pF‑1.0 µF, 0.01‑1.0 µF) |
|---|---|
| Capacitance tolerance | 45 % to +80 %/‑20 % |
| Temperature coefficient | NPO, X7R, Z5U, Y5V |
| Lead bend | <1.2 mm (<0.047 in) |
The series is available in NPO (ultra‑stable), X7R (stable), Z5U and Y5V (general purpose) dielectrics.
They can be ordered using a 15‑digit clear‑text code or the BCcomponents 12NC part number.
