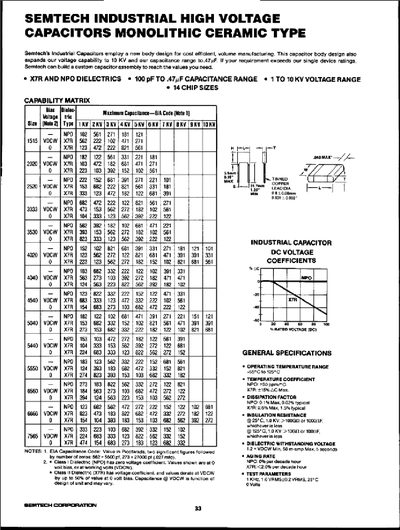

Semtech offers a line of industrial high‑voltage monolithic ceramic capacitors with a new body design for cost‑efficient, volume manufacturing. The family covers a wide capacitance range from 100 pF to 47 µF and voltage ratings from 1 kV up to 10 kV, using X7R and NPO dielectric materials.
The sheet includes a capability matrix, general specifications such as operating temperature range, dissipation factor, insulation resistance, and dielectric withstanding voltage, as well as detailed chip and encapsulated dimensions. Ordering instructions and part codes are also provided for custom capacitor assemblies.
| Capacitance range | 100 pF to 47 µF |
|---|---|
| Voltage range | 1 kV to 10 kV |
| Dielectric types | X7R, NPO |
| Number of chip sizes | 14 |
| Operating temperature range | °C to 1G |
| Dissipation factor | specified in sheet |
| Insulation resistance | specified in sheet |
| Aging rate | specified in sheet |
The capacitors cover a range from 100 pF to 47 µF.
They are rated from 1 kV up to 10 kV.
Fourteen different chip sizes are available.
The capacitors use X7R and NPO dielectric materials.
