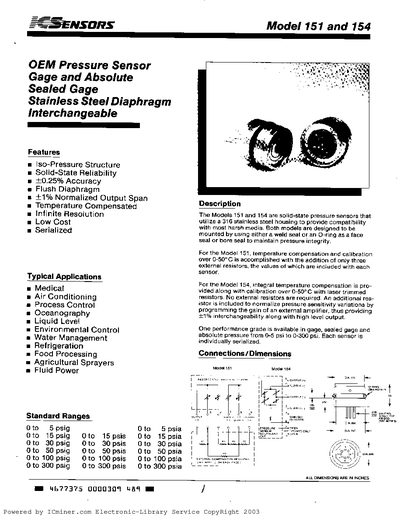

The CSENSORS 151 and 154 are solid‑state pressure sensors housed in 316 stainless steel, suitable for harsh media. Model 151 uses external resistors for temperature compensation, while Model 154 includes integral compensation and a gain‑programming resistor for high‑level output.
The datasheet lists performance specifications such as a supply current of 1.5 mA, static accuracy of 0.25 %, and operating temperature range from –10 °C to +80 °C, as well as standard pressure ranges from 0‑5 psi up to 0‑300 psi in gage, sealed‑gage, and absolute versions.
| Supply Current | 1.5 mA |
|---|---|
| Static Accuracy | 0.25 % |
| Amplifier Output Span | 2.98‑3.05 V |
| Operating Temperature | -10 °C to +80 °C |
| Housing Material | 316 stainless steel |
| Model 151 Pin Count | 6 pins |
| Model 154 Pin Count | 8 pins |
The supply current is 1.5 mA.
The housing is made of 316 stainless steel.
