The SKiiP® 3 2-pack integrated data features IGBT symbol units for controlling current and voltage.
The SKiiP 1203GB122-2DW combines two integrated gate drivers in a compact module. It features IGBT and diode technology, integrated current and temperature sensors, and optional fibre‑optic communication. The device complies with IEC 60721‑3‑3 humidity class and IEC 60068‑1 climate tests, and is UL recognized.

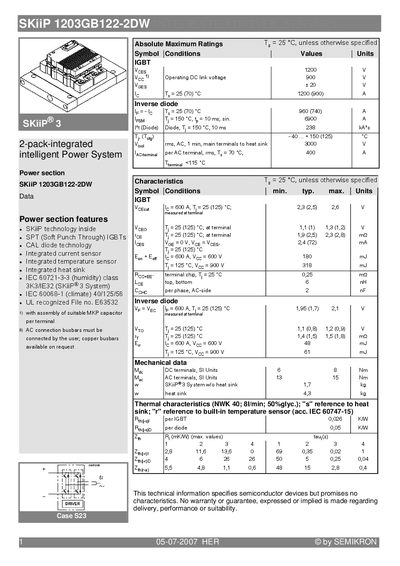

The datasheet lists absolute maximum ratings, typical electrical characteristics, mechanical data, and thermal parameters. Designers can use Semikron's SEMISEL tool for electrical and thermal design support, and the module can be equipped with busbars and MKP capacitors as required.
| IGBT off‑state voltage (Voes) | 1200 V |
|---|---|
| DC link voltage (Veo) | 900 V |
| Switching frequency | 15 kHz |
| Input resistance (Rin) | 10 kΩ |
| Input capacitance (Cin) | 1 nF |
| Thermal resistance per IGBT (RθJC) | 0.026 K/W |
The device is rated for operation from –40 °C to +85 °C, with a storage temperature up to +125 °C.
Designers can use the SEMISEL tool, which is available on the Semikron website.
