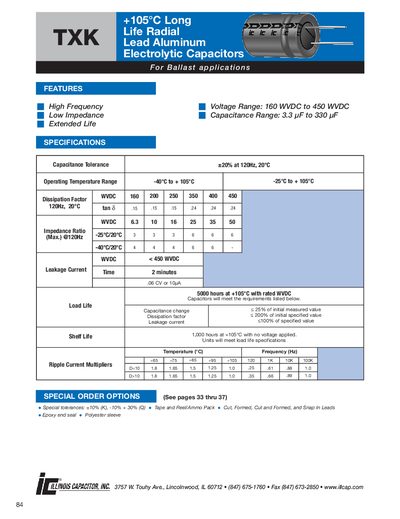

This document describes a long-life radial lead aluminum electrolytic capacitor with an operating temperature range of -40°C to +105°C. Its features include high frequency, low impedance, extended life, and a voltage range of 160 WVDC to 450 WVDC. The product specifications include capacitance tolerance, dissipation factor, leakage current, load life, etc.
This document describes the TXK series of +105°C long‑life radial lead aluminum electrolytic capacitors, intended for ballast and other high‑temperature applications. It outlines key features such as high frequency capability, low impedance, and extended life performance.
The datasheet includes detailed electrical specifications, physical dimensions, special order options, and a comprehensive part list with part numbers, capacitance values, voltage ratings, and mechanical sizes.
| Capacitance range | 3.3 µF to 330 pF |
|---|---|
| Voltage rating | 160 WVDC to 450 WVDC |
| Operating temperature | -40 °C to +105 °C |
| Dissipation factor (120 Hz, 20 °C) | tan δ 5 |
| Leakage current | 0.06 µA or 10 pA |
| Load life at +105 °C | 5000 hours with rated voltage |
| Shelf life (no voltage) | 1000 hours at +105 °C |
The capacitors operate from –40 °C up to +105 °C.
They are rated from 160 WVDC to 450 WVDC.
They are rated for 5000 hours of load life at +105 °C with the rated voltage applied.
A 3.3 µF part has a case size of 10 × 21 mm.
