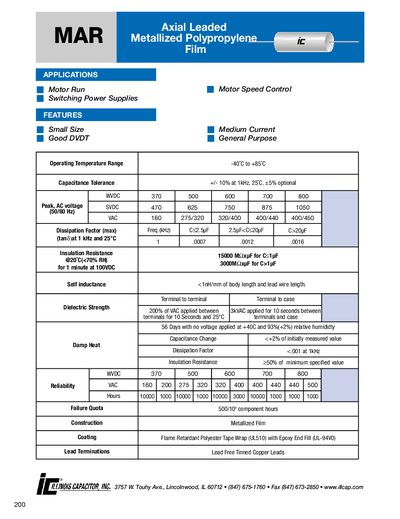

This document describes the features and characteristics of MAR axial leaded metallized polypropylene film capacitors, including operating temperature range, capacitance tolerance, dissipation factor, insulation resistance, self inductance, dielectric strength, humidity resistance, and reliability.
This datasheet provides the electrical and mechanical specifications for MAR axial leaded metallized polypropylene film capacitors. It includes application notes, key features, and detailed performance parameters such as voltage ratings, temperature range, and reliability data.
The document also lists physical dimensions, standard part numbers, construction details, and lead termination information, helping designers select the appropriate part for their circuits.
| Capacitance Tolerance | +10 % at 1 kHz, 25 °C (optional ±5 %) |
|---|---|
| WVDC (Working Voltage DC) | 370 V, 500 V, 600 V, 700 V, 800 V |
| Peak AC Voltage (SVDC) | 470 V, 625 V, 750 V, 875 V, 1050 V (50/60 Hz) |
| Insulation Resistance (C < 1 µF) | ≥ 15 000 MΩ·cm at 20 °C, < 70 % RH |
| Self‑Inductance | < 1 nH per mm of body and lead length |
| Dissipation Factor (tan δ) at 1 kHz | < 0.001 |
WVDC ratings are offered at 370 V, 500 V, 600 V, 700 V, and 800 V.
The dissipation factor is less than 0.001 at 1 kHz.
Self‑inductance is less than 1 nH per millimeter of body length and lead wire length.
