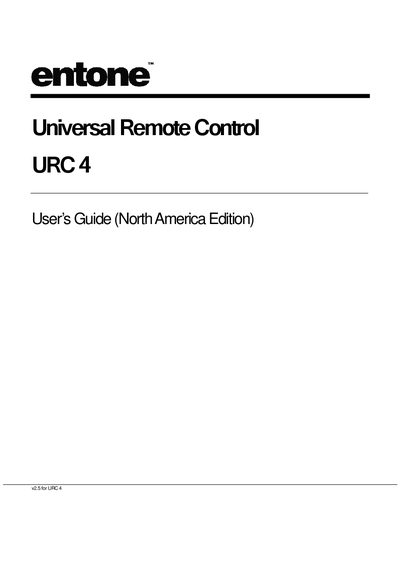

This document is the User's Guide for URC 4 Universal Remote Control. It describes the features and functions of the remote control.
This guide provides step‑by‑step instructions for using the Entone Universal Remote Control (URC 4). It covers battery installation, RF and IR operation, remote antenna package (RAP) setup, and connecting set‑top boxes to the TV coax network.
Additional sections describe how to register RF remotes, view firmware and device codes, and troubleshoot reception range, helping users get the most out of their remote control system.
| Battery type | AA‑size batteries |
|---|---|
| Firmware version format | x.y.z (three digits) |
| Device code length | 4‑digit device code |
Press down on the battery cover's top latch, slide the cover off, replace all batteries with the same type, match the plus ends, and slide the cover back into place.
Press and hold the “STB” button for 5 seconds, then press “INFO”. The backlight will blink to indicate each digit of the version.
Each output allows a maximum of three RF URC 4 remotes to be registered.
Plug the RAP into the TV, then connect the TV coax cable to the RAP and the wall outlet.
